FRONT HEAT DUCT REMOVAL/INSTALLATION

id071100307100

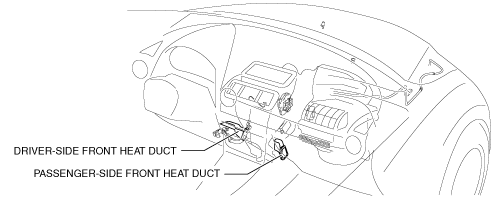

am2zzw00009862

Driver-side

1.  Remove the driver-side side wall. (See SIDE WALL REMOVAL/INSTALLATION.)

2.  Detach the tab.

am2zzw00009574

3.  Remove the driver-side front heat duct.

4.  Install in the reverse order of removal.

Passenger-side

1.  Remove the passenger-side side wall. (See SIDE WALL REMOVAL/INSTALLATION.)

2.  Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3.  Detach the tab.

am2zzw00009575

4.  Remove the passenger-side front heat duct.

5.  Install in the reverse order of removal.
