1
|
VISUALLY INSPECT REAR FOG LIGHT BULB
• Visually inspect the rear fog light bulb.
• Is the rear fog light bulb normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the rear fog light bulb, then go to Step 5.
|
|
2
|
INSPECT REAR FOG LIGHT CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the negative battery cable.
• Disconnect the rear fog light connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 5.
|
|
3
|
INSPECT ELECTRICAL SUPPLY UNIT (ESU) CONNECTOR CONDITION
• Disconnect the electrical supply unit (ESU) connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 5.
|
|
4
|
INSPECT REAR FOG LIGHT CIRCUIT FOR SHORT TO GROUND
• Verify that the rear fog light and electrical supply unit (ESU) connectors are disconnected.
• Inspect for continuity between rear fog light terminal A (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|

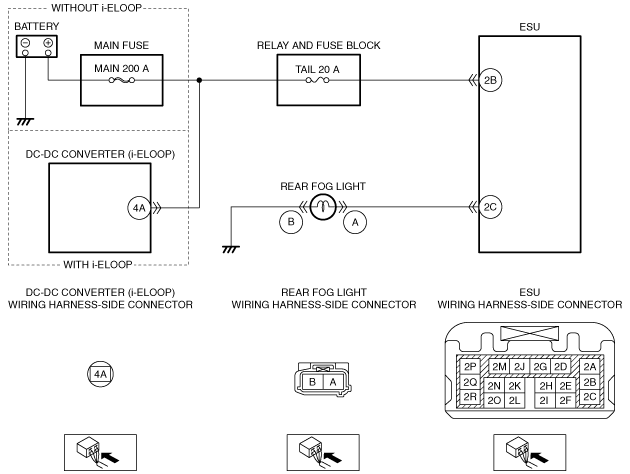

Refer to the wiring diagram and verify whether or not there is a common connector between rear fog light terminal A and electrical supply unit (ESU) terminal 2C.
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has a short to ground.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
5
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Always reconnect all disconnected connectors.
• Connect the negative battery cable.
• Clear the DTC for the electrical supply unit (ESU) using the M-MDS.
• Perform the following operation.
-
― Operate the light switch to the TNS position.
― Operate the fog light switch to the R.FOG position.
• Retrieve the electrical supply unit (ESU) DTCs using the M-MDS.
• Is the same DTC displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the electrical supply unit (ESU).
Go to the next step.
|
|
No
|
Go to the next step.
|
|
6
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
|
|
No
|
DTC troubleshooting completed.
|
