Note

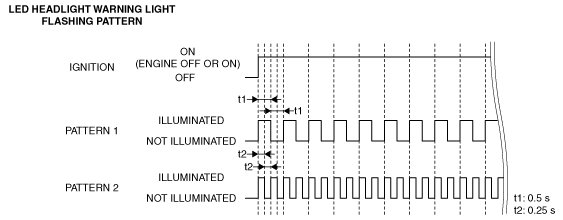

• Auto leveling control module flashes the LED headlight warning light as follows if there is a malfunction in the system.
am2zzw00009059
|
DTC TABLE [HEADLIGHT AUTO LEVELING SYSTEM]
id0902i7960500
am2zzw00009059
|
|
DTC No. |
LED headlight warning light |
Description |
Fail-safe |
Drive cycle |
Self test type*1 |
Memory function |
Page |
|---|---|---|---|---|---|---|---|
|
B1041:54
|
Flash (Pattern 2)
|
Headlight auto leveling system initialization error
|
×
|
—
|
—
|
×
|
|
|
B1044:01
|
Flash (Pattern 1)
|
Auto leveling sensor circuit malfunction
|
×
|
—
|
—
|
×
|
|
|
B1D00:13
|
Flash (Pattern 1)
|
Headlight (LH) circuit malfunction
|
×
|
—
|
C
|
×
|
|
|
B1D01:13
|
Flash (Pattern 1)
|
Headlight (RH) circuit malfunction
|
×
|
—
|
C
|
×
|
|
|
U0001:88
|
Flash (Pattern 1)
|
Unit communication error (HS-CAN)
|
×
|
—
|
C
|
×
|
|
|
U0100:00
|
Flash (Pattern 1)
|
Communication error with PCM
|
×
|
—
|
C
|
×
|
|
|
U0140:00
|
Flash (Pattern 1)
|
Communication error with BCM
|
×
|
—
|
C
|
×
|
|
|
U0155:00
|
Flash (Pattern 1)
|
Communication error with instrument cluster
|
×
|
—
|
C
|
×
|
|
|
U0423:68
|
—
|
Error signal received from instrument cluster
|
×
|
—
|
C
|
—
|
|
|
U2005:86
|
Flash (Pattern 1)
|
Error signal received from PCM
|
×
|
—
|
C
|
×
|
|
|
U2300:54
|
Flash (Pattern 1)
|
Error configuration data received from instrument cluster
|
×
|
—
|
C
|
×
|
|
|
U2300:55
|
Flash (Pattern 1)
|
Instrument cluster configuration not implemented
|
×
|
—
|
C
|
×
|
|
|
U2300:56
|
Flash (Pattern 1)
|
Configuration data unmatched with instrument cluster
|
×
|
—
|
C
|
×
|
|
|
U3000:42
|
Flash (Pattern 1)
|
Auto leveling control module internal malfunction
|
×
|
—
|
C
|
×
|
|
|
U3000:49
|
Flash (Pattern 1)
|
Auto leveling control module internal malfunction
|
×
|
—
|
C
|
—
|
|
|
U3003:16
|
—
|
Auto leveling control module low power supply voltage input
|
×
|
—
|
C
|
—
|
|
|
U3003:17
|
—
|
Auto leveling control module high power supply voltage input
|
×
|
—
|
C
|
—
|
