PUSH BUTTON START INSPECTION

id091400006900

Resistance Inspection

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION.)

4.  Remove the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)

5.  Verify that the continuity between the push button start terminals is as indicated in the table.

am3uuw00009904

am3uuw00009903

•  If not as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)

LED Illumination Inspection

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION.)

4.  Remove the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)

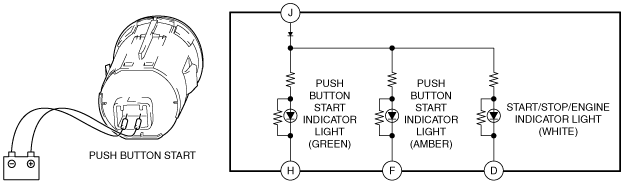

5.  Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.

am2zzw00008322

am2zzw00008323

•  If the LED does not illuminate as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)
