LIFTGATE LATCH SWITCH INSPECTION

id091400512200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Verify that the continuity is as indicated in the table.

am2zzw00007900

am2zzw00007901

•  If not as indicated in the table, replace the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

Note

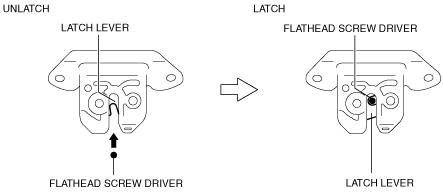

•  When inspecting the latch condition of the liftgate latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

am2zzw00007902
