FRONT UNDER COVER No.1 REMOVAL/INSTALLATION

id091600888800

1.  Remove the screws.

am2zzw00009007

2.  Remove the fasteners.

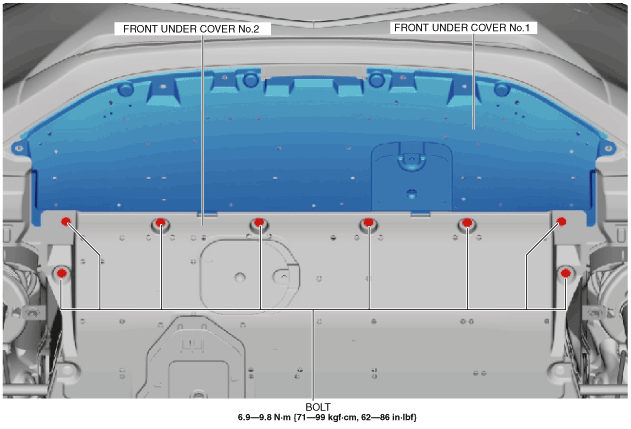

3.  Remove the bolts.

am2zzw00009008

4.  Remove the fastener which can be verified at the position where front under cover No.2 was pulled back.

am2zzw00009009

5.  Remove the front under cover No.1 while detaching the guide.

am2zzw00009010

6.  Install in the reverse order of removal.
