REAR DOOR TRIM REMOVAL/INSTALLATION
id091700603700
1. Disconnect the negative battery cable. (with power window system) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the power window subswitch (rear) (with power window system) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
3. Remove the regulator handle. (with manual window system) (See REGULATOR HANDLE REMOVAL.) (See REGULATOR HANDLE INSTALLATION.)

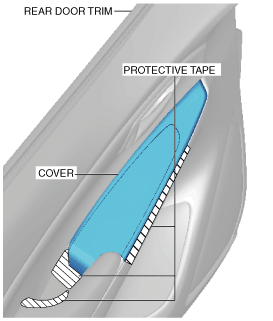

4. To prevent scratches or damage, affix protective tape to the position shown in the figure of the rear door trim. (with manual window system)
am2zzw00009520
|
5. Insert a remover tool shown in the figure and remove the tab A in the direction of arrow (1). (with manual window system)
am2zzw00009521
|
6. Insert a remover tool shown in the figure and remove the tabs B in the direction of arrow (1). (with manual window system)
7. Slide the cover in the direction of the arrow (2) shown in the figure and remove the tab C. (with manual window system)
8. Remove the inner handle cover while detach tabs, pins.
am2zzw00007764
|
9. Affix protective tape to the shaded position shown in the figure.
am2zzw00007765
|
10. Remove the screws.
am2zzw00007766
|
11. Hold the shaded area shown in the figure with your hand, pull the rear door trim in the direction of the arrow, and detach the clip.
12. Pull the front door trim in the order of arrows (1), (2) and (3) shown in the figure and detach the clips.
am2zzw00007767
|
13. Insert the remover tool into the position shown in the figure, move it in the direction of arrow (1), and detach the clip.
am2zzw00007768
|
14. Insert the remover tool into the position shown in the figure, move it in the direction of arrow (2), and detach the clip.
15. Move the front door trim in the direction of arrow (3) shown in the figure and remove the front door trim.
16. Remove the front inner weatherstrip from the front door trim.
am2zzw00007769
|
17. Install in the reverse order of removal. (See Rear Inner Weatherstrip Installation Note.)
Rear Inner Weatherstrip Installation Note
1. Install the rear inner weatherstrip to the rear door inner panel.
am2zzw00007770
|
