GLASS ANTENNA INSPECTION

id092000806200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the glass antenna terminal cover. (5HB) (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.)

3.  Remove the glass antenna terminal cover. (4SD) (See AM/FM ANTENNA AMPLIFIER REMOVAL/INSTALLATION.)

4.  Visually inspect the glass antenna for damage.

5.  Verify that the continuity is as indicated in the table.

am3zzw00009853

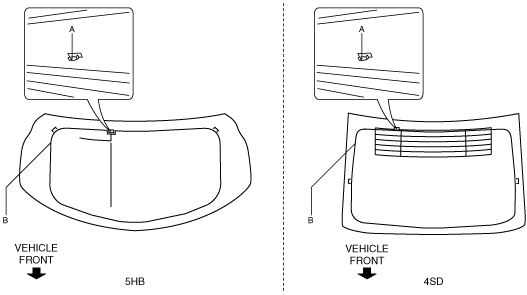

am3zzw00009801

•  If not as indicated in the table, repair the glass antenna. (See REAR WINDOW DEFOGGER REPAIR.)
