FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0114q1175000

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the fuel pump control module connector.

4.  Remove in the order indicated in the table.

4SD

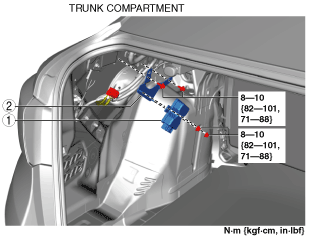

am2zzw00012917

5HB

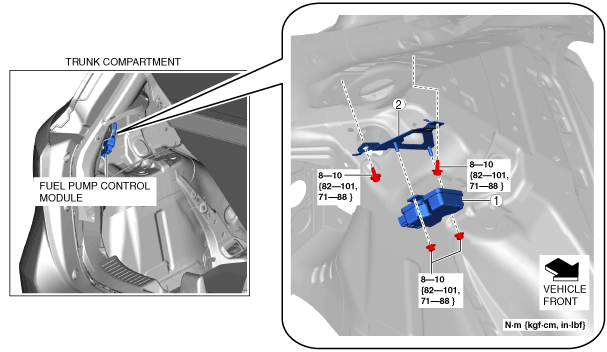

am2zzw00012926

1	Fuel pump control module
2	Fuel pump control module bracket

5.  Install in the reverse order of removal.
