DTC B1D07:11 [BCM]

id0902f5070200

Description

Turn light (RH) circuit malfunction

Detection condition

•  BCM detects a short to ground in the turn light (RH) circuit with the ignition switched ON (engine off or on).

Fail-safe

Not applicable

Possible cause

•  BCM connector or terminal malfunction

•  Front turn light bulb (RH) malfunction

•  Front combination light (RH) connector or terminal malfunction

•  Short to ground in wiring harness between the following terminals:

―  Front combination light (RH) terminal D—BCM terminal 3A (With front combination light (bulb type) and without headlight manual leveling system)

―  Front combination light (RH) terminal E—BCM terminal 3A (With front combination light (LED type) or headlight manual leveling system)

•  Rear turn light bulb (RH) malfunction

•  Rear turn light (RH) connector or terminal malfunction

•  Power outer mirror (RH) connector or terminal malfunction

•  Side turn light (RH) malfunction

•  Short to ground in wiring harness between the following terminals:

―  Rear turn light (RH) terminal A—BCM terminal 1E

―  Power outer mirror (RH) terminal E—BCM terminal 1E

•  BCM malfunction

Description	Turn light (RH) circuit malfunction
Detection condition	• BCM detects a short to ground in the turn light (RH) circuit with the ignition switched ON (engine off or on).
Fail-safe	Not applicable
Possible cause	• BCM connector or terminal malfunction • Front turn light bulb (RH) malfunction • Front combination light (RH) connector or terminal malfunction • Short to ground in wiring harness between the following terminals: ― Front combination light (RH) terminal D—BCM terminal 3A (With front combination light (bulb type) and without headlight manual leveling system) ― Front combination light (RH) terminal E—BCM terminal 3A (With front combination light (LED type) or headlight manual leveling system) • Rear turn light bulb (RH) malfunction • Rear turn light (RH) connector or terminal malfunction • Power outer mirror (RH) connector or terminal malfunction • Side turn light (RH) malfunction • Short to ground in wiring harness between the following terminals: ― Rear turn light (RH) terminal A—BCM terminal 1E ― Power outer mirror (RH) terminal E—BCM terminal 1E • BCM malfunction

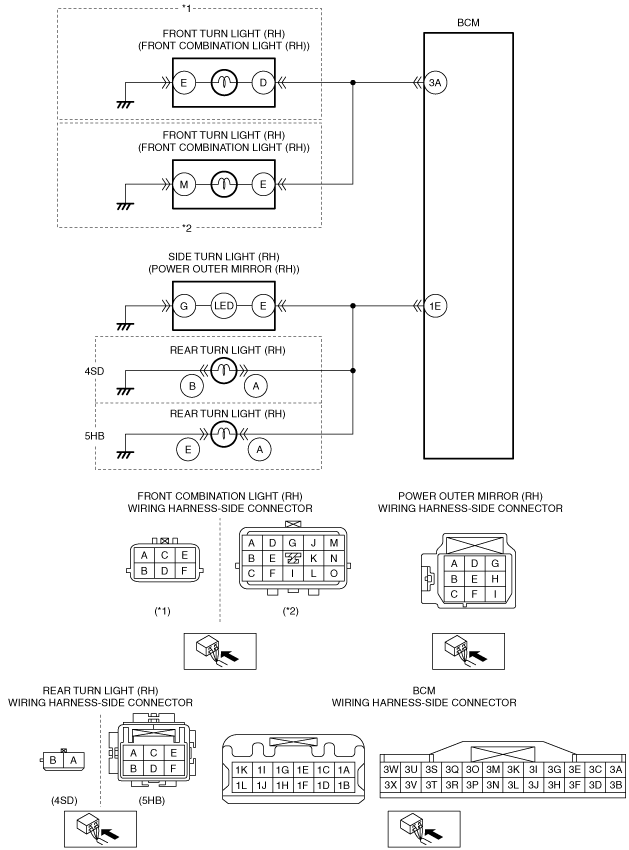

*1 :With front combination light (bulb type) and without headlight manual leveling system

*2 :With front combination light (LED type) or headlight manual leveling system

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY BCM DTCs AGAIN • Clear the DTC for the BCM using the M-MDS. (See CLEARING DTC [BCM].) • Operate the turn switch to the RH position. • Retrieve the BCM DTCs using the M-MDS. (See DTC INSPECTION [BCM].) • Is the same DTC displayed?	Yes	Go to the next step.
1		No	Go to Step 15.
2	DETERMINE MALFUNCTIONING LIGHT • Operate the turn switch to the RH position. • Are there any lights among the following which do not flash? ― Front turn light (RH) ― Side turn light (RH) ― Rear turn light (RH)	Yes	All lights do not flash: • Go to the next step. Front turn light (RH) does not flash: • Go to Step 4. Side turn light (RH) and rear turn light (RH) do not flash: • Go to Step 8.
2		No	Go to Step 14.
3	INSPECT BCM CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) • Disconnect the BCM connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to Step 14.
3		No	Repair or replace the connector, then go to Step 14.
4	VISUALLY INSPECTFRONT TURN LIGHT BULB (RH) • Visually Inspect the front turn light bulb (RH). • Is the front turn light bulb (RH) normal?	Yes	Go to the next step.
4		No	Replace the front turn light bulb (RH), then go to Step 14. (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
5	INSPECT FRONT COMBINATION LIGHT (RH) CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) • Disconnect the front combination light (RH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
5		No	Repair or replace the connector, then go to Step 14.
6	INSPECT BCM CONNECTOR CONDITION • Disconnect the BCM connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
6		No	Repair or replace the connector, then go to Step 14.
7	INSPECT FRONT TURN LIGHT (RH) CONTROL CIRCUIT FOR SHORT TO GROUND • Verify that the front combination light (RH) and BCM connectors are disconnected. • Inspect for continuity between BCM terminal 3A (wiring harness-side) and body ground. • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: • Front combination light (RH) terminal D—BCM terminal 3A (With front combination light (bulb type) and without headlight manual leveling system) • Front combination light (RH) terminal E—BCM terminal 3A (With front combination light (LED type) or headlight manual leveling system) If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. Go to Step 14.
7		No	Go to Step 14.
8	VISUALLY INSPETC REAR TURN LIGHT BULB (RH) • Visually inspect the rear turn light bulb (RH). • Is the rear turn light bulb (RH) normal?	Yes	Go to the next step.
8		No	Replace the rear turn light bulb (RH), then go to Step 14. (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.)
9	INSPECT REAR TURN LIGHT (RH) CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) • Disconnect the rear turn light (RH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
9		No	Repair or replace the connector, then go to Step 14.
10	INSPECT POWER OUTER MIRROR (RH) CONNECTOR CONDITION • Disconnect the power outer mirror (RH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
10		No	Repair or replace the connector, then go to Step 14.
11	INSPECT SIDE TURN LIGHT (RH) • Inspect the side turn light (RH). (See SIDE TURN LIGHT INSPECTION.) • Is the side turn light (RH) normal?	Yes	Go to the next step.
11		No	Replace the side turn light (RH), then go to Step 14. (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)
12	INSPECT BCM CONNECTOR CONDITION • Disconnect the BCM connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
12		No	Repair or replace the connector, then go to Step 14.
13	INSPECT TURN LIGHT (RH) CONTROL CIRCUIT FOR SHORT TO GROUND • Verify that the power outer mirror (RH), rear turn light (RH) and BCM connectors are disconnected. • Inspect for continuity between BCM terminal 1E (wiring harness-side) and body ground. • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: • Rear turn light (RH) terminal A—BCM terminal 1E • Power outer mirror (RH) terminal E—BCM terminal 1E If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. Go to the next step.
13		No	Go to the next step.
14	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Always reconnect all disconnected connectors. • Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) • Clear the DTC for the BCM using the M-MDS. (See CLEARING DTC [BCM].) • Operate the turn switch to the RH position. • Retrieve the BCM DTCs using the M-MDS. (See DTC INSPECTION [BCM].) • Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) Go to the next step.
14		No	Go to the next step.
15	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [BCM].)
15		No	DTC troubleshooting completed.
