1
|
INSPECT ELECTRICAL SUPPLY UNIT (ESU) CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the negative battery cable.
• Disconnect the electrical supply unit (ESU) connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
With front combination light (bulb type):
• Go to the next step.
With front combination light (LED type):
• Go to Step 3.
|
|
No
|
Repair or replace the connector, then go to Step 6.
|
|
2
|
VISUALLY INSPECT HEADLIGHT HI/LO BULB (LH)
• Visually inspect the headlight HI/LO bulb (LH).
• Is the headlight HI/LO bulb (LH) normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the headlight HI/LO bulb (LH), then go to Step 6.
|
|
3
|
INSPECT FRONT COMBINATION LIGHT (LH) CONNECTOR CONDITION
• Disconnect the front combination light (LH) connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 6.
|
|
4
|
INSPECT HEADLIGHT LO (LH) CONTROL CIRCUIT FOR SHORT TO GROUND
• Verify that the front combination light (LH) and electrical supply unit (ESU) connectors are disconnected.
• Inspect for continuity between front combination light (LH) terminal B (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|

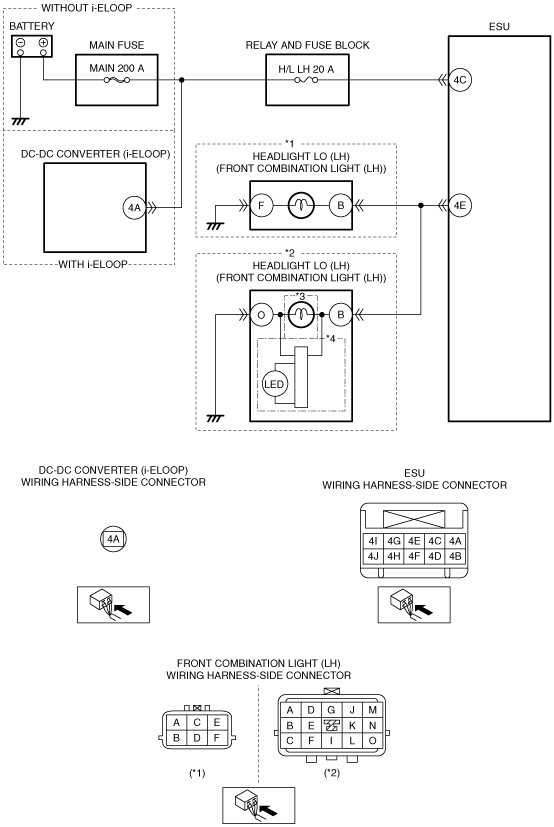

Refer to the wiring diagram and verify whether or not there is a common connector between front combination light (LH) terminal B and electrical supply unit (ESU) terminal 4E.
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has a short to ground.
Go to Step 6.
|
|
No
|
With front combination light (bulb type):
• Go to Step 6.
With front combination light (LED type):
• Go to the next step.
|
|
5
|
VERIFY IF MALFUNCTIONING LOCATION IS FRONT COMBINATION LIGHT (LH) DEPENDING ON REPEATABILITY
• Always reconnect all disconnected connectors.
• Connect the negative battery cable.
• Clear the DTC for the electrical supply unit (ESU) using the M-MDS.
• Operate the light switch to the HEAD position and the dimmer switch to LO position.
• Retrieve the electrical supply unit (ESU) DTCs using the M-MDS.
• Is the same DTC displayed?
|
Yes
|
Replace the front combination light (LH), then go to the next step.
|
|
No
|
Go to Step 7.
|
|
6
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Always reconnect all disconnected connectors.
• Connect the negative battery cable.
• Clear the DTC for the electrical supply unit (ESU) using the M-MDS.
• Operate the light switch to the HEAD position and the dimmer switch to LO position.
• Retrieve the electrical supply unit (ESU) DTCs using the M-MDS.
• Is the same DTC displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the electrical supply unit (ESU).
Go to the next step.
|
|
No
|
Go to the next step.
|
|
7
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
|
|
No
|
DTC troubleshooting completed.
|
