REQUEST SWITCH INSPECTION
id091400515400
Driver's Door/Passenger's Door
1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
3. Remove the following parts:
- (1) Power window main switch (Driver's side)/ Power window subswitch (passenger's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
- (2) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
- (3) Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
- (4) Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
- (5) Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)
- (6) Front door key cylinder (driver's side) (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)
- (7) Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)

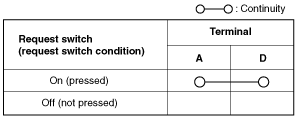

4. Verify that the continuity is as indicated in the table.
-
