FOOT SUPPORT REMOVAL/INSTALLATION

id091700606100

1.  Remove the following parts:

(1)  Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

2.  Partially peel back the floor covering.

3.  Remove the fastener.

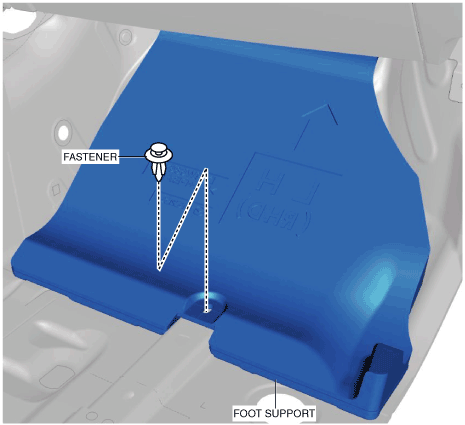

am2zzw00007927

4.  Pull the foot support in the direction of the arrow and remove it.

am2zzw00007928

5.  Install in the reverse order of removal.
