STEERING SWITCH INSPECTION

id092000822600

Warning

•  Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

Note

•  When removing the driver-side air bag module, it is necessary to rotate the steering wheel.If the ignition has been switched off with the driver's door closed, the steering wheel will be locked. Perform the procedure from Steps 1-3 so that the steering wheel will not be locked.

Resistance Inspection

1.  Switch the ignition ON (engine off or on).

2.  Open the driver's door.

3.  Switch the ignition off.

4.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

5.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

6.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

Volume switch, seek switch, mute button

1.  Measure the resistance between steering switch terminals 3H and 3J under the following conditions.

•  Resistance with volume switch (-) pressed and held

―  53.064—54.136 ohms

am2zzw00011702

•  Resistance with volume switch (+) pressed and held

―  145.233—148.167 ohms

am2zzw00011703

•  Resistance with seek switch (+) pressed and held

―  297.693—303.707 ohms

am2zzw00011704

•  Resistance with seek switch (-) pressed and held

―  556.083—567.317 ohms

am2zzw00011705

•  Resistance with mute button pressed and held

―  2,011.383—2,052.017 ohms

am2zzw00011706

•  Resistance with any switch not pressed

―  4,813.083—4,910.317 ohms (without mute button)

―  4,981.383—5,082.017 ohms (with mute button)

am2zzw00011707

•  If not as indicated in the table, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)

Talk button, pick-up button, hang-up button

1.  Measure the resistance between steering switch terminals 3M and 3J under the following conditions.

•  Resistance with talk button pressed and held

―  103.95—106.05 ohms

am2zzw00011708

•  Resistance with pick-up button pressed and held

―  271.26—276.74 ohms

am2zzw00011709

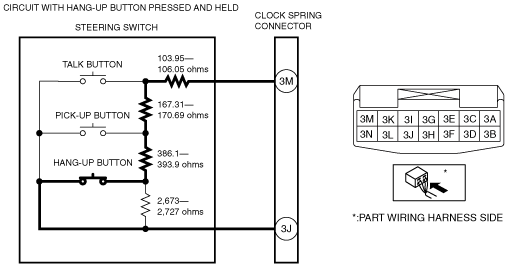

•  Resistance with hang-up button pressed and held

―  657.36—670.64 ohms

am2zzw00011710

•  Resistance with any switch not pressed

―  3,330.36—3,397.64 ohms

am2zzw00011711

•  If not as indicated in the table, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)

UP switch, DOWN switch, INFO button

1.  Measure the resistance between steering switch terminals 3D and 3L under the following conditions.

•  Resistance with UP switch pressed and held

―  0 ohms

am2zzw00011712

•  Resistance with DOWN switch pressed and held

―  386.1—393.9 ohms

am2zzw00011713

•  Resistance with INFO switch pressed and held

―  999.9—1,020.1 ohms

am2zzw00011714

•  Resistance with any switch not pressed

―  2,524.5—2,575.5 ohms

am2zzw00011715

•  If not as indicated in the table, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)

LED Illumination Inspection

1.  Switch the ignition ON (engine off or on).

2.  Open the driver's door.

3.  Switch the ignition off.

4.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

5.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

6.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

7.  Apply battery positive voltage to steering switch terminal 3F, and connect terminal 3B to ground.

am2zzw00011716

8.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)
