KEYLESS RECEIVER REMOVAL/INSTALLATION

id091400514300

5HB

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim (RH) to the position allowing removal of the keyless receiver.(See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

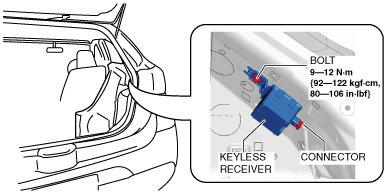

am2zzw00008596

5.  Remove the bolt.

6.  Remove the keyless receiver.

7.  Install in the reverse order of removal.

4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(3)  Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  C-pillar trim (RH) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am2zzw00008595

4.  Remove the bolt.

5.  Remove the keyless receiver.

6.  Install in the reverse order of removal.
