FRONT MAP LIGHT INSPECTION

id091800808600

Single light type

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

4SD

1.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

3.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

4.  Coat hook (See HEADLINER REMOVAL/INSTALLATION.)

5.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

6.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

7.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

8.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

9.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

10.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

11.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

5HB

1.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

3.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

4.  Coat hook (See HEADLINER REMOVAL/INSTALLATION.)

5.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

6.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

7.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

8.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

9.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

10.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

11.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

12.  Lower anchor installation bolt on the rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION.)

13.  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

14.  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

15.  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

16.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

17.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

18.  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Place the headliner on the seats. (See HEADLINER REMOVAL/INSTALLATION.)

Note

•  The front map light can be removed without having to remove the headliner from the vehicle.

4.  Remove the front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

5.  Verify that the continuity between the front map light terminals is as indicated in the table.

am2zzw00010624

am2zzw00010625

•  If not as indicated in the table, replace the front map light bulb or front map light. (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

Dual Light Type

Front map light switch

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

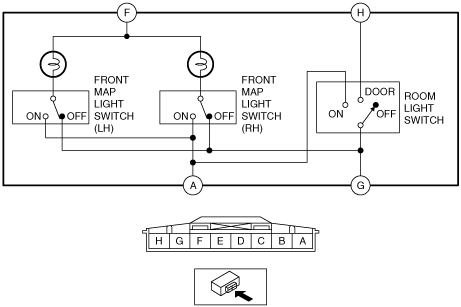

3.  Verify that the continuity between the front map light terminals is as indicated in the table.

am2zzw00010626

am2zzw00010627

•  If not as indicated in the table, replace the front map light bulb or the front map light. (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

Room light switch

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the front map light terminals is as indicated in the table.

am2zzw00010628

am2zzw00010627

•  If not as indicated in the table, replace the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
