ANTENNA FEEDER NO.2 REMOVAL
id092000843700
5HB
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (2) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (3) Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
- (4) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (5) Coat hook (See HEADLINER REMOVAL/INSTALLATION.)
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (7) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (8) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (9) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (10) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (11) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (12) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (13) Lower anchor installation bolt on the rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION.)
- (14) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (15) Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
- (16) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
- (17) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
- (18) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (19) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (20) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (21) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

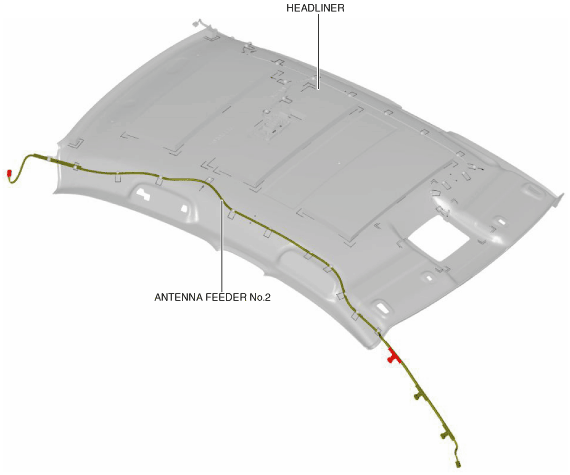

3. Peel off the tape and remove antenna feeder No.2.
4SD
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (2) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (3) Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
- (4) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (5) Coat hook (See HEADLINER REMOVAL/INSTALLATION.)
- (6) Center console tray (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION.)
- (7) Shift bezel (See SHIFT BEZEL REMOVAL/INSTALLATION.)
- (8) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (9) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (10) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F65M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)
- (11) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (12) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
- (13) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
- (14) CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
- (15) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)
- (16) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
- (17) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (18) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (19) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (20) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (21) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (22) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (23) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (24) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (25) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (26) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

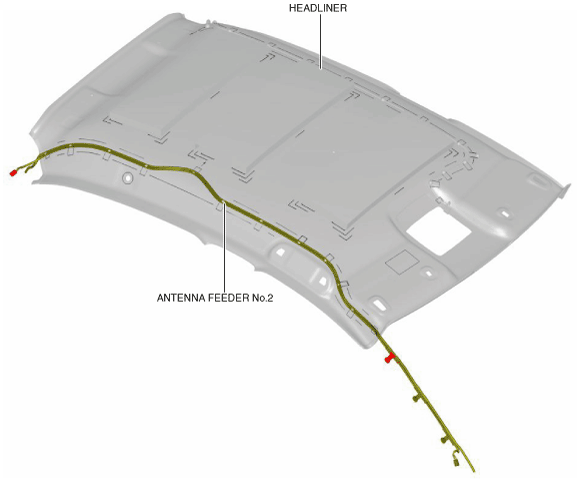

3. Peel off the tape and remove antenna feeder No.2.
